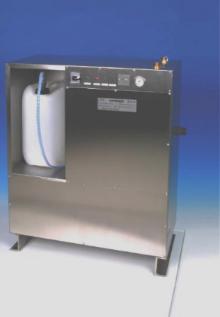

Winco System 2010 / 3010

products > electronically-controled dispensing centres

printable version

2000 / 3000 l/h pipe isolated
Accordant to DIN 1988 and the worksheet W 503 from the DVGW (German Association of Water and Gas) compact model.

The adjustment charge between 0.25% and 3.0% for continuous and constant adding of disinfectant solution concentrate to the tap water. As a central supply station it affords an economic supplying from the disinfectant solution tapping.

To be set in:
Hospitals, industry, swimming-pools, laundries, animal and food areas, test animal culture institutes, laboratories, sewage disposals and waste discharge units.

BAM license: BAM DDE 18

Adjustable for the most common, water soluble disinfectant solutions and cleaning concentrates

Adjustable from 0.25% to 3.0%

Rugged, easy to maintain, long-living, easy operating

Automatically as disinfectant solution concentration insufficiency

Disinfection solution supply center in system construction
Fabrikat LSK-Wintrich 2010 - 2000 l/h, 6,0 bar
Fabrikat LSK-Wintrich 3010 - 3000 l/h, 6,0 bar

In general consisting of:

1 pipe isolator as DIN 1988 and worksheet W 503 from the DVGW as a plastic seal housing,
free water inlet per magnetic valve above level-controlled, safety overflow and dry run
safety for booster pumps

2 rotary pumps for pressure increase to 6.0 bar shut-off pressure, 400 V, 50 Hz, rating 1.1
kW, 3.2A, 2,900/minute, types of protection IP 44

1 contactor for quantity based tap to control the metering pump

2 dosing units as reciprocating plunger type pumps with disinfectant solution resistant parts,
230 V, 50 Hz

1 TÜV certificated diaphragm pressure box with prestressed butyl diaphragm, total capacity 8

1 VDE proofed plastic control box with control electronic for level controlling and supplement
dosing of the disinfectant solution
1 plastic suction tube with a seal cone and a foot valve to tap disinfectant solution from the

1 complete piping of the equipment made of none corroding material.

1 stainless-steel box, material 1.4301, grounded with a frontally setting-outlet for preparation

Instrumental panel:
Control switch: off - on
Manometer: 0 - 10 bar
Hour counter: four-digit

Signal lights:
Ready to use: green

Concentrate (reserve): yellow

Concentrate (empty): red
Motor fault: red
Housing dimensions:
L x W x H = 800 x 400 x 1180 mm

Dimension sheet M 178


Disinfectant solution tapping: R 1"

Water inlet: R 1"

Safety overflow: R 1 ¼"

Weight: approx. 110 kg

1 operation and service manual set

Accessories if requested (not included in our delivery range)

1 first filling: barrel capacity 25 l (not part of our delivery)
1 second filling: barrel capacity 25 l (not part of our delivery)
D010395 1 remote signaling to ZLT (extra equipment if requested)

Delivery terms: ex work, excl. packing
Delivery period: 2 - 3 weeks approx.
Payment: 14 days 2% discount, 30 days net
D900010 Installation and operator training is carried out by LSK-Wintrich staff. The guarantee period is
controlled by legal regulations. Equipment is supplied in accordance with the general terms
and conditions of LSK-Wintrich. Assembly, connection and filling are not included in our
contract of sale. Maintenance contract as per BAM guideline from 1978; price per
maintenance on request.

Please install into the extraction line a sample outlet valve!
