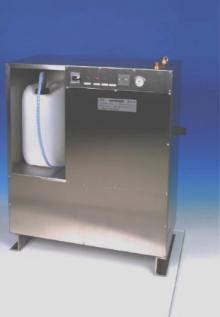

Winco System 1512 D

products > electronically-controled dispensing centres

printable version


1500 l/h pipe isolated
Accordant to DIN 1988 and the worksheet W 503 from the DVGW (German Association of Water and Gas) compact model.

The adjustment charge between 0.25% and 3.0% for continuous and constant adding of disinfectant solution concentrate to the tap water. As a central supply station it affords an economic supplying from the disinfectant solution tapping.

Application areas:
Hospitals, industry, swimming-pools, laundries, animal and food areas, test animal culture institute, laboratories, sewage works and waste discharge units.

BAM license: BAM DDE 18

Concentration:
Adjustable for the common, water soluble disinfectant solutions and cleaning concentrates.

Adding:
Adjustable from 0.25% to 3.0%

Construction:
Easy operating, long-living, simple handling

Shut-off:
Automatically on disinfectant solution concentration shortage
D010320 Disinfection solution supply-center in system constru-ction LSK-Wintrich fabrication 1512 D -
1500 l/h, 6.0 bar
Metering accuracy documented per certificate
In general consisting of:

1 pipe isolator as DIN 1988 and worksheet W 503 from the DVGW as a plastic seal housing,
free water inlet per magnetic valve above level-controlled, safety overflow and dry run
safety for booster pumps

2 rotary pump for pressure increase to 6.0 bar shut-off pressure 400 V, 50 Hz, rating 1.1 kW,
3.2A, 2,900/minute, types of protection IP 44

1 contactor for quantity based tap to control the metering pump

1 metering unit as a reciprocating plunger type pump with disinfectant solution resistant
parts, 230 V, 50 Hz

2 TÜV certificated diaphragm pressure box with prestressed butyl diaphragm, total contain 8
litres

1 VDE proofed plastic control box with control electronic for level controlling and supplement
dosing of the disinfectant solution
1 plastic suction tube with seal cone a foot valve to tap disinfectant solution from the barrel

1 complete piping of the equipment made of none corroding material

1 stainless-steel box, material 1.4301, grounded with a frontally setting-outlet for supplement
of concentrate

Instrument panel
Control switch: off - on
Manometer: 0 - 10 bar
Hour counter: four-digit

Signal lights:
Ready to use: green
Concentrate (reserve): yellow
Concentrate (empty): red
Motor fault: red

Housing dimensions:
L x W x H = 800 x 400 x 1180 mm

dimension sheet M 231

Connections

Disinfectant solution tapping: 2 x R ¾"
Water inlet: R ¾"
Safety overflow: R 1 ¼"

Weight: 75 kg approx.
11 set operation and service manual

Accessories if requested (not included in our delivery)

1 first filling: barrel 25 l capacity (not part of delivery)
1 second filling: barrel 25 l capacity (not part of delivery
D010395 1 remote signaling to ZLT (extra equipment as requested)

Delivery terms: ex work, excl. packing
Delivery period: 2 - 3 weeks approx.

Payment: 14 days 2% discount, 30 days net
D900010 Installation and operator training is carried out by LSK-Wintrich staff. The guarantee period is
controlled by legal regulations. Equipment is supplied in accordance with the general terms
and conditions of LSK-Wintrich. Assembly, connection and filling are not included in our
contract of sale. Maintenance contract as per BAM guideline from 1978; price per
maintenance on request.

Note:
Please install into the extraction line a sample outlet valve!
